Lighter, more robust, more cost-effective – new overmoulding control electronics process offers numerous advantages for OEMs including costs
05 Oct 2020 | 6385 Views | By Autocar Professional Bureau
With a new, globally unique manufacturing process for a transmission control unit, Vitesco Technologies, the leading international manufacturer of modern drive technologies and electrification solutions, has showcased its expertise and innovative strength in the field of high-tech electronics.
In comparison with conventional control units, the new product, known as ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
With a new, globally unique manufacturing process for a transmission control unit, Vitesco Technologies, the leading international manufacturer of modern drive technologies and electrification solutions, has showcased its expertise and innovative strength in the field of high-tech electronics.
In comparison with conventional control units, the new product, known as overmoulding control electronics, excels with around 45% less weight, greater robustness and significantly fewer production stages. This results in clear cost advantages.
“Vitesco Technologies is not only one of the drivers of electric mobility, but we also consistently and continuously focus on innovation in our electronic products. The overmoulding control unit, which has now gone into serial production, is another testament to the pioneering work that we are doing in the interests of forward-thinking mobility and sustainable growth,” says Wolfgang Breuer, head of the Electronic Controls business unit at Vitesco Technologies.
In the conventional design of an electronic control unit, the electronics are located within a housing. By contrast, in an overmoulding electronic control unit, the electronic components, which are arranged on a printed circuit board as is normally the case, are completely embedded in plastic. New, high-precision injection moulding processes as well as new, particularly resistant plastics enable worldwide serial automobile production of this type of electronic control unit by Vitesco Technologies for the very first time.
The overmoulding manufacturing process offers several advantages at once. Firstly, on account of the extreme robustness of the components - since the sensitive high-tech components are completely enclosed in plastic – they can easily withstand even strong vibrations. Secondly, an overmolding component is not only lighter than a comparable electronic control unit in a conventional housing, but also significantly flatter. The transmission control unit developed by Vitesco Technologies is currently the flattest transmission control unit on the market with a thickness of only seven millimeters. By way of comparison, the control unit used up to now was 1.5 centimeters thick. The difference definitely plays a decisive role, as the electronic control unit is screwed directly into the transmission, and installation space is very limited there, in fact every millimeter counts. Another advantage is that an overmolding component can be produced using considerably fewer production stages than a housed electronic control unit. The new technology thus reduces complexity and is also considerably more cost-effective.
Large scale rollout of the new technology
The new overmoulding electronic control unit has been produced in Nuremberg since spring 2020 and has already been used in large-scale production by a German car manufacturer in various vehicle types with rear wheel drive and automatic transmission. As of the beginning of 2021, Vitesco Technologies will also be producing the overmoulding electronic control in the new plant in Debrecen, Hungary, which is currently being completed. Thanks to the high degree of flexibility and extensive technical expertise in the global plant network, Vitesco Technologies is in a position to roll out such state-of-the-art production technologies on a large scale.
“For Vitesco Technologies, the overmoulding process is a new key technology which we will be using as quickly as possible for further electronic control units. We are registering a high level of interest from automobile manufacturers. The development of new overmolding electronics is already underway – above all for use in hybrid and electric vehicles,” says Breuer. With the technological leap that the new manufacturing process enables, Vitesco Technologies is once again driving the trend towards greater integration, more efficient processes and more sustainable technologies. This means that overmolding expertise is a further building block in driving forward the electrification of the drive system and thus sustainable mobility.

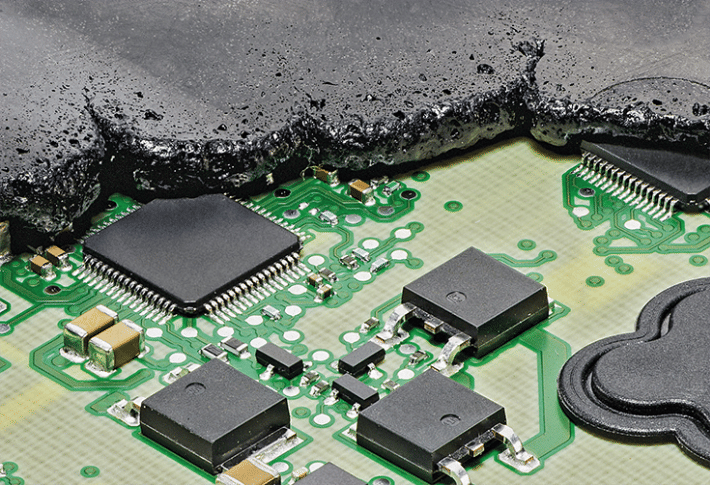

In an overmoulding electronic control unit, the electronic components, which are arranged on a printed circuit board as is normally the case, are completely embedded in plastic.
The new overmoulding control electronics excels with around 45% less weight, greater robustness and significantly fewer production stages.
