The Japanese company's new range of Skyactiv-X petrol engines work in the same way as diesel motors. Here's why.
15 Apr 2019 | 6164 Views | By Jesse Crosse, Autocar UK

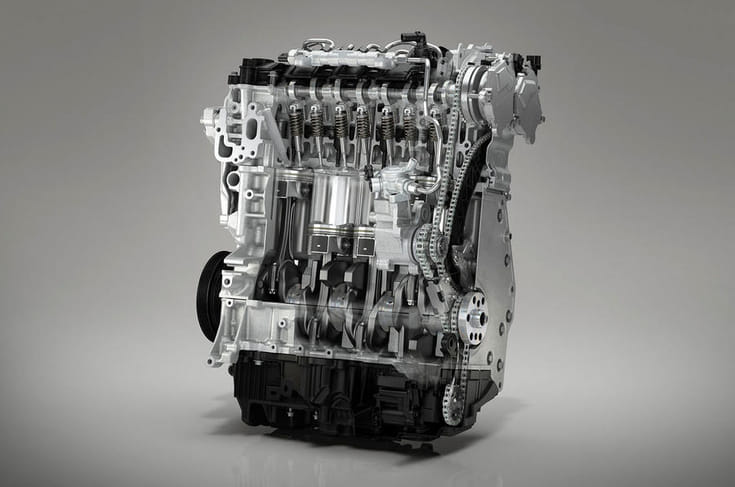

When Mazda developed its Skyactiv-X Spark Controlled Compression Ignition (SPCCI) engine, it perfected one of the most elusive concepts since Nikolaus Otto’s first thumper clanked into life nearly 150 years ago. Why? Getting petrol to ignite in the same way as a diesel by compression instead of a spark had been an ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
When Mazda developed its Skyactiv-X Spark Controlled Compression Ignition (SPCCI) engine, it perfected one of the most elusive concepts since Nikolaus Otto’s first thumper clanked into life nearly 150 years ago. Why? Getting petrol to ignite in the same way as a diesel by compression instead of a spark had been an engineering holy grail for a long time.
Auto Ignition, Combined Combustion System and Gasoline Compression Ignition are all names used for similar past projects by others attempting to perfect the same concept. The proper name for the underlying concept behind all of these (including SPCCI) is Homogeneous Charge Compression Ignition (HCCI).
With HCCI engines, the fuel is evenly – homogeneously – mixed in the combustion chamber. It’s lean, too, with extra air supplied by a supercharger-like pump. Compression ignition exploits the fact that if you squeeze air enough, it gets hotter (try closing the end of a bicycle pump with your thumb). It’s how sparkless diesels work and why they need a much higher compression ratio than petrol – and it’s why some billed the HCCI concept as the merging of petrol and diesel engine technology.
But why bother and what are the advantages? Plenty, according to many industry gurus. When fired by HCCI, the fuel air charge ignites as a whole throughout the combustion chamber. In a conventional spark-ignition petrol engine, fuel is ignited at the spark plug and then spreads along a flame front. The benefits of doing it the HCCI way include reduced fuel consumption and CO2 emissions and fewer oxides of nitrogen (NOx).
Back in 2001, Lotus Engineering developed a system where the fuel was ignited by hot exhaust gases re-ingested into the engine, to achieve much the same goal as Mazda. Ricardo also produced research engines, and in 2007 Volkswagen demonstrated its prototype Gasoline Compression Ignition engine based on a FSI petrol engine. Like the Lotus concept, it used high levels of exhaust gas recirculation (EGR) to ignite the fuel.
HCCI using hot exhaust gases could only work when the engine wasn’t under much load, because of the smaller amounts of fuel used. For starting and full power, it needed a conventional spark, and a smooth switch between the two proved difficult to achieve.
SPCCI might sound like a cheat – after all, it still involves a spark. But the difference is the spark is used to ignite a small, fuel-rich ‘detonator’ charge injected directly around the spark plug. The rest of the chamber contains a lean charge brought to the brink of igniting by high compression. When the detonator charge is ignited by the spark, the expanding fireball from it increases enough extra pressure on the main charge to make it spontaneously combust. The pay-off is that SPCCI works when the engine is at full gallop and not just a gentle canter – so during most normal driving. The difference between this and the earlier concepts is that combustion is guaranteed and stable. You might say it’s a spark of genius.
