Mahle, the global supplier to the automotive industry, has announced a breakthrough with CNG and downsized engines.
22 Sep 2015 | 5841 Views | By Autocar Professional Bureau
With the combination of downsizing and running on compressed natural gas (CNG), Mahle has demonstrated that the ongoing development of the combustion engine continues to be worthwhile. With an optimised engine design, CO2 emissions were up to 31 percent lower. This remarkable result, however, is only possible if the ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
With the combination of downsizing and running on compressed natural gas (CNG), Mahle has demonstrated that the ongoing development of the combustion engine continues to be worthwhile. With an optimised engine design, CO2 emissions were up to 31 percent lower. This remarkable result, however, is only possible if the components can withstand the extremely high requirements of monovalent CNG operation. As a leading engine specialist, Mahle says it has the expertise required to develop the complete system.
CNG-powered vehicles from various manufacturers have been on the market for many years now. Their engines were originally designed to run on conventional fuel and therefore utilise the majority of the CO2 potential purely by substituting fuel — which can already improve emissions by up to 24 percent. Further optimisation with CNG-specific development is faced with the still relatively low number of CNG vehicles produced.

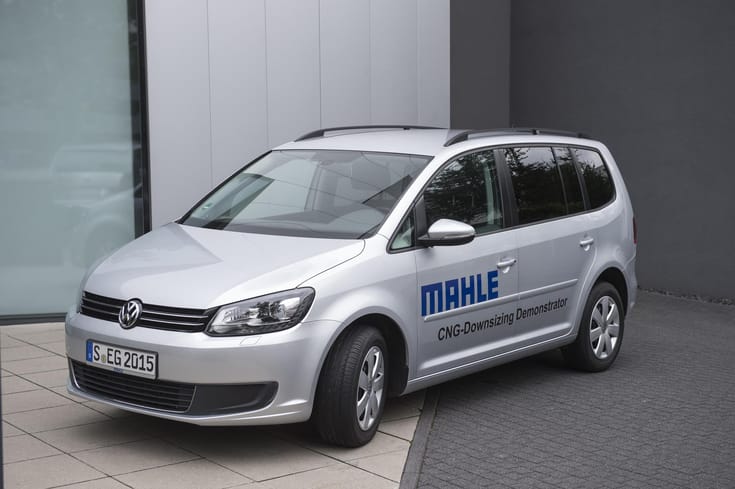

Mahle says it has now investigated the potential for further reducing CO2 emissions with a combination of downsizing and CNG. In a first step, the well-known Mahle downsizing engine — a three-cylinder, single-stage turbocharged petrol engine with direct injection and 1.2-litre displacement — was adapted for dual operation with natural gas and petrol. The engine was then tested and applied on the engine test bench, and integrated into a test vehicle and measured.
The goal of the first step was to demonstrate the potential and limits of the bivalent variant, determine potential optimisation focus, and identify the associated challenges. The results form the basis for the second step, in which an optimised, monovalent design and the application of the necessary engine systems and components will be implemented
In order to ensure that the engine components can meet the extreme requirements for pressure resistance and thermal diffusity, Mahle plans to use the following technologies for the monovalent variant:
- Pistons: the EVOTEC RSC combines high stability and optimal cooling due to its cast-in ring carrier and cooling channel.
- Ring pack: optimised for friction losses and wear, with three-piece oil control ring
- Connecting rod: keystone connecting rod with pressed-in bushing for better dissipation of the higher surface pressure
- Valves: sodium-cooled hollow valves on the intake and exhaust sides for increased temperature resistance, with a reinforced bottom plate
- Piston pins: pins with DLC coating
- Bearings: polymer-coated connecting rod bearings (sputter on bronze) and main bearings (aluminum-bimetallic)
Tests at Mahle indicate that the required peak pressure resistance and higher temperature limits are possible by optimizing the basic engine. This also means that specific power output of 110 kW/L and nominal torque of 270 Nm (above 1,600rpm) are possible in monovalent CNG operation with the Mahle downsizing engine. A family van with a kerb weight of 1,700kg can thus achieve CO2 emissions of about 106 g/km, putting it nearly 31 percent below the current petrol variant with comparable driving performance.
