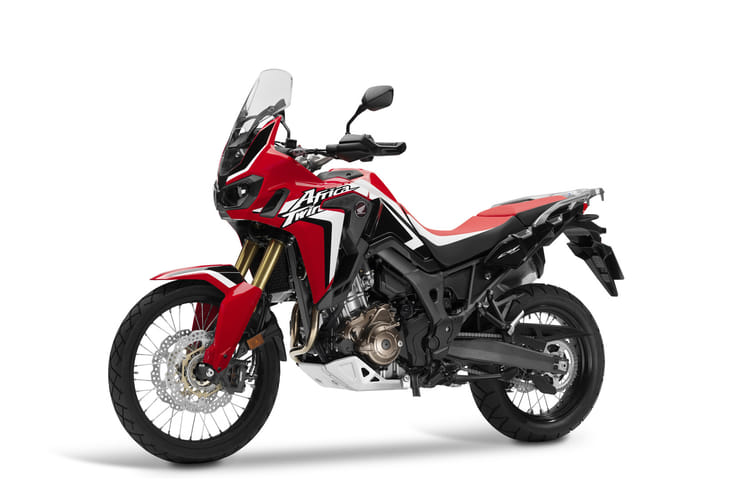

The CRF1000L Africa Twin is equipped for adventure riding, with a potent engine and dynamic chassis.
28 Jul 2015 | 4974 Views | By Autocar Professional Bureau
Honda has revealed technical details of its new CRF1000L Africa Twin, which will be in Honda showrooms across Europe in late 2015. The CRF1000L Africa Twin is equipped for adventure riding, with a potent engine and dynamic chassis.
Honda says the ‘go anywhere’ approach starts with the engine, which ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
Honda has revealed technical details of its new CRF1000L Africa Twin, which will be in Honda showrooms across Europe in late 2015. The CRF1000L Africa Twin is equipped for adventure riding, with a potent engine and dynamic chassis.
Honda says the ‘go anywhere’ approach starts with the engine, which has to perform in off-road situations as well as on-road long-range touring, and all points in between. The CRF1000L Africa Twin’s 1000cc parallel twin power plant draws heavily on Honda’s off-road race experience in the form of the CRF250R/450R competition machines, and uses the same four-valve Unicam head design for compact overall dimensions. A lightweight cast camshaft – using the same materials as the CBR1000RR Fireblade – operates the valve train, and twin spark plugs fire the fuel/air mixture in each combustion chamber.
The engine’s short height contributes to the CRF1000L Africa Twin’s excellent ground clearance – another prerequisite for a true adventure machine. It also uses clever packaging of componentry to both dynamic and aesthetic effect. The water pump is housed within the clutch casing, and the water and oil pumps are driven by a shared balancer shaft. Further reducing engine size is the lower crankcase design, which stores the oil and houses the pressure-fed pump.
The lightweight six-speed manual gearbox uses the same shift-cam design as found on the CRF250R/450R to ensure positive changes and is equipped with an assist slipper clutch.
A steel semi-double cradle frame provides the perfect balance of high-speed stability – also while fully loaded – matched to genuine off-road ability, agility and sheer strength. Mass centralisation – with items like the battery packaged at the rear of the cylinder head – contributes to a low centre of gravity.
The long-travel Showa inverted forks are fully adjustable and feature dual radial-mount Nissin four-piston brake calipers and 310mm ‘wave’ style floating discs. The Showa rear shock has hydraulic spring preload adjustment. Like the CRF450R Rally, the CRF1000L Africa Twin uses 21/18-inch front rear spoked wheels, wearing 90/90-21 and 150/70-18 tyres.
Following its design theme of ‘unlimited adventure’, the Africa Twin is styled with minimum bodywork in a tough, lightweight form that offers both weather protection for the rider and a slim, agile feel. Dual headlights maintain the original’s signature presence and the seat height adjusts 20mm to either 870mm or 850mm. A large18.8-litre fuel tank – coupled with the engine’s fuel efficiency – provides a range of up to 400km.
To tailor the overall electronics package to capably tackle any conditions on or off-road, the Honda Selectable Torque Control (HSTC) system offers three levels of control, and it is possible for the rider to turn off the ABS system for the rear wheel.
There will be several versions of the CRF1000L Africa Twin, with prices starting from €12,100 (Rs 9.24 lakh).
Honda is offering Dual Clutch Transmission (DCT) as an option on the CRF1000L Africa Twin, with the use of a common crankcase keeping the width the same as the manual transmission version.
It features the standard manual mode – allowing the rider to operate gear shifts through triggers on the left handlebar – and two automatic modes. D mode offers the best balance of fuel economy and comfort cruising. S mode has now been revised to give extra levels of sports performance, with three different shift patterns to choose from: S1, S2 and S3.
