During the past five years, Ford has recycled enough clay to fill more than 26,000 12-ounce cans of soda - roughly equal to the weight of three Asian elephants.
12 Oct 2016 | 3488 Views | By Autocar Pro News Desk
Modeling clay is a favourite of many children, who can craft, re-craft and recycle the pliable stuff over many years. While a bit more advanced, Ford Motor Company has employed a similar idea with the clay it uses to model future vehicles: craft, re-craft and then recycle, the latter to ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
Modeling clay is a favourite of many children, who can craft, re-craft and recycle the pliable stuff over many years. While a bit more advanced, Ford Motor Company has employed a similar idea with the clay it uses to model future vehicles: craft, re-craft and then recycle, the latter to the tune of nearly 2,270 kg of clay each year.
Even as Ford embraces digital design and new technology, nothing beats building a full-size clay model of a vehicle. These clay models remain an important part of Ford’s creative design process, helping designers spot issues in both the interior and exterior of a vehicle.
“We are constantly being influenced by new technologies, but when we want to view physical properties early in the process, we still turn to clay. When a design is still fluid, clay allows immediate reviews and feedback so necessary for working in a collaborative atmosphere,” said Lloyd VandenBrink, modeling manager at Ford’s Truck Studio in Dearborn, Michigan.
Ford uses over 90,000 kg of clay every year to construct full-size vehicle models. None of this material would be reused in the past, but during the last five years the company has used a proprietary machine to recycle more than 9,000 kg of clay and keep it out of landfills.
That is the equivalent of a dozen full-size clay model exteriors. For example, a full-size model built to design the new Raptor was composed of 880 kg of clay – and designers spent 20,000 hours modeling it over four years.
Innovating with recyclables

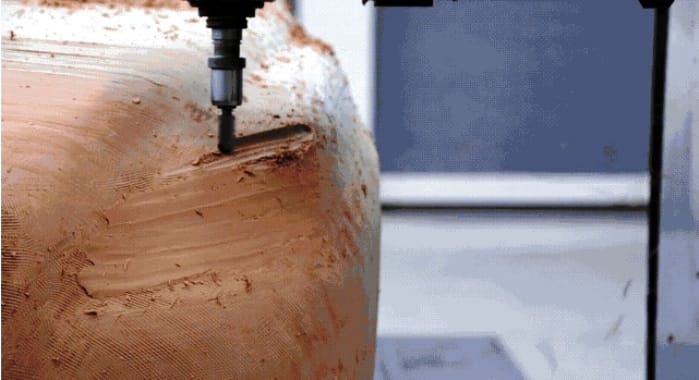

Most of the clay that Ford recycles comes from the milling process, during which designers use a machine to help them shape the silhouette of a vehicle. Since even a grain of sand can affect the finish quality of a model, only clay chips that fall into bins surrounding the vehicle are recycled.
Once gathered, these clay chips are placed in the recycling machine – designed to process only Ford’s unique clay material and nothing else. The machine compresses and churns the clay with multiple blades, sucking all the air out of the material. The clay is then passed through a nozzle that’s heated just enough to churn it out with the proper consistency so that it can be reused.
Although the design process has been greatly improved by digital software and new scanning technology, clay is still the best medium for tackling changes in car design. When a small or digital model is scaled, there are some aspects that may not come out right, and full-size models built from clay help identify issues that wouldn’t have been apparent otherwise – such as depth issues on belt line edges or a car hood’s power dome.
Collective clay play
Ultimately, clay is used to complement the design process. The American carmaker constantly creates models on a computer, milling that surface design onto a clay model, making changes by hand before scanning them back into a computer.
“Computers tend to have a more single user work flow, where clay models tend to be much more collaborative. A group conversation is a great tool for collaboration and consensus, and clay models do that same thing with design. Everybody can see and explore possibilities together with a better chance of developing a great-looking model,” said VandenBrink.
Fast Facts
- During the past five years, Ford has recycled enough clay to fill more than 26,000 12-ounce cans of soda. The amount recycled equates roughly to the weight of three Asian elephants.
- Sulphur used to be a prominent ingredient in clay, but the element would escape once clay was heated and eventually force electronics to malfunction. It was phased out in the 2000s as a result.
- The clay that Ford uses in its modeling does not really contain clay at all. It’s primarily a combination of waxes and oil with filler, and does not contain water like traditional ceramic clay does.
- Clay used to feature whale blubber until the hunting of whales was banned.
