New Cell Manufacturing Competence Centre in Parsdorf rolls out first prototypes; carmaker claims they will be even more efficient and powerful offering 20% higher energy density, 30% faster charging and 30% more range.
28 Oct 2023 | 4615 Views | By Autocar Professional Bureau

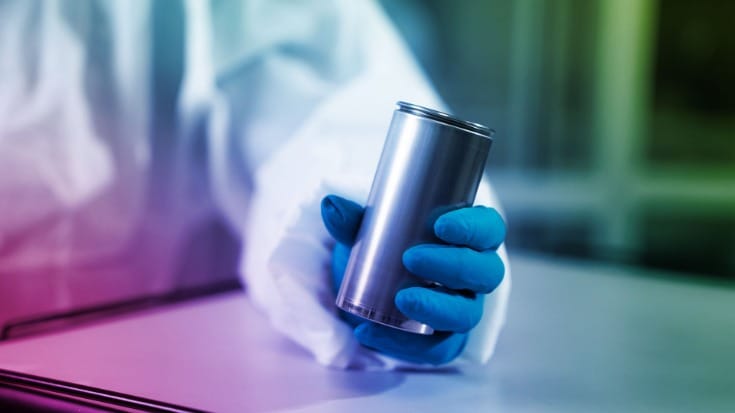

The BMW Group has begun producing round cells for next-generation batteries at its new Cell Manufacturing Competence Centre (CMCC) in Parsdorf. The first prototypes – 95 millimetres tall, cylinder-shaped, with a diameter of 46 millimetres – rolled out on October 27.
These new battery cell samples are like those ...
This is an Autocar Pro Plus article. Subscribe to continue reading.
The BMW Group has begun producing round cells for next-generation batteries at its new Cell Manufacturing Competence Centre (CMCC) in Parsdorf. The first prototypes – 95 millimetres tall, cylinder-shaped, with a diameter of 46 millimetres – rolled out on October 27.
These new battery cell samples are like those that will be used in the models of the Neue Klasse from 2025 onwards.
“With the Cell Manufacturing Competence Centre, we are strengthening Germany’s capacity for innovation,” explained Milan Nedeljković, member of the Board of Management of BMW AG, responsible for Production. “In this way, we are making an important contribution to the quantum leap in technology in the Neue Klasse.”
“Production of battery cell samples in Parsdorf marks the next logical step in our battery cell strategy,” said Frank Weber, member of the Board of Management of BMW AG, responsible for Development. “The Cell Manufacturing Competence Centre is the perfect complement to our existing Battery Cell Competence Centre in the north of Munich. Development takes place there, then we scale the best product towards a series process in Parsdorf. Thanks to cross-divisional collaboration, we are able to link product and process in a unique way.”
The CMCC in Parsdorf will enable the BMW Group to span the whole cell value creation process. With this know-how, the company is setting benchmarks for production, quality, performance, costs and environmental standards, which it is implementing in close cooperation with its partners for standard production of battery cells. At its battery cell competence centres in Munich and Parsdorf, the BMW Group is systematically pursuing future milestones, such as the ramp-up of the sixth generation of BMW electric drive trains and development of all-solid-state batteries (ASSB).
How the cell is created: Production steps for sample manufacturing at the CMCC
Cell manufacturing begins with electrode production. Here the base material, comprising, for example, graphite for the anode and nickel oxides for the cathode, with binders and solvents, is metered and mixed in a precisely measured ratio. This creates the so-called ‘slurry’ – which means wafer-thin metal foils are coated and then compressed after drying. In technical jargon, this is referred to as ‘calendering’.
The highest level of precision is required: The foil is just a few micrometres thick – in other words, thinner than the threads of a spider web, while the coating is in the micrometre range. During cell assembly, the coated foils, referred to as calendered electrodes, are wound into so-called ‘jelly rolls’ using the separator and inserted into the cell housing. The cells are filled with electrolyte, then charged for the first time and finally checked for functionality and quality.
Sixth-gen BMW battery tech: New cell format and enhanced cell chemistry
The battery cell is responsible for electric vehicles’ core properties: range, driving performance and charging time. With the new BMW round cell specially designed for the electric architecture of the Neue Klasse models, it will be possible to significantly increase the range of the top model by up to 30 percent (according to WLTP).
The new BMW round cells come with a standard diameter of 46 millimetres and two different heights of 95 millimetres and 120 millimetres. Compared to the prismatic cells of the fifth BMW battery cell generation, the nickel content of the sixth-generation BMW round cells will be higher on the cathode side, while the cobalt content will be reduced. On the anode side, the silicon content will be increased. As a result, the cell’s volumetric energy density will improve by more than 20 percent.
Battery, drive train and charging technology in the Neue Klasse will have a higher voltage of 800 volts. Among other things, this will optimise how energy is supplied to direct current high-power charging stations, which can achieve a much higher charging capacity with a current of up to 500 amperes – thus reducing the time it takes to charge from ten to 80 percent by up to 30 percent.
The BMW Group states that it is particularly focused on keeping the carbon footprint and resource consumption of production as low as possible, starting in the supply chain. For standard production of battery cells, the cell manufacturers commissioned will use cobalt, lithium and nickel containing secondary material. Together with the commitment by its cell suppliers to use only green power from renewable energies in production, the BMW Group will reduce the carbon footprint from battery cell production by up to 60 percent, compared to the current generation of battery cells.
